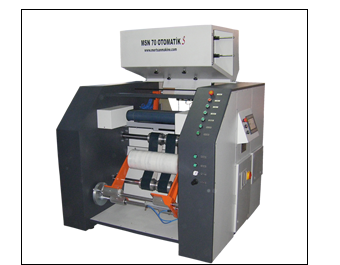

Full Automatic Stretch Rewinding Machine

MSN Automatic-S

Automatic Stretch Rewinding Machine

     Our MSN Automatic-S model machine full automatic stretch rewinding machine.Is preferred by customers looking for a quick solution.

  This model is working full automatic.It has a large roll case.Jumbo stretch of 60 cm diameter coil can be loaded.Optionally,has weighing system.Thus you can set automatically rewinding weight.

Product Info Technical Details Photo Gallery

Food Stretcha and industry stretch rewinding.

Fully automatic working with minimum worker requirements.

Wide and can be adjusted to the desired size bobbin storage.

When finished tube and stretch warning system alerts the user.

High rewinding speed. ( 1100 meters/minute )

Ppneumatically pressure interchangeable bobbin winding heads.

The possibility of winding up to 1500 meters feature.

Pneumatic pressure adjustment.(Rewinding the bobbin,and the process of opening pressure setting that strap)

DSP intelligent control system with microcontroller.

LCD touch control panel.

Labor statistics and reporting system.

Electronic regulating system.

DSP automatic calibration system with microcontroller system.

Technical Specifications
Decompressor Unit Properties Rewinder Unit Properties
Maximum jumbo roll width 55 cm Maximum roll width 55 cm
Maximum roll diameter 60 cm Minimum bobbin diameter 32 mm
Maximum roll weight 280 kg Maximum bobbin diameter 76 mm
Standard bobbin diameter 38-50-76 mm Maximum roll diameter 20 cm
Technical Information
Physical Dimensions 110 x 140 x 170 cm
Working Voltage 380 V , 50/60 Hz (+/- 10%)
Engine Power 4 kW3P ACI Engine
Pneumatic air pressure 6 Atm
Rewind Speeed 1100 meters/minute
Control Type Full Automatic - Computerized Control System
