Stretch and Aluminum Foil Rewinder Machine

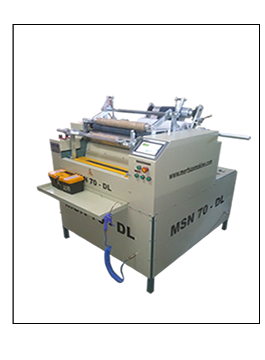

MSN 70 DL Slicing

Stretch Rewinder Machine


     MSN 70 DL model machine,food stretch,Industry stretch,aluminum foil, and many more different products with the goal of precision metering process is used by our customers.


     This model especially food stretch and aluminum foil rewinding of our customers who are demanded.The main reason for this,the material used according to the food and high precision rewinding.

Product Info Technical DetailsPhoto Gallery

Food stretch,industry stretch slicing and rewinding.

Adjustable slicing knives.

The air shafts system for easy to use.

Pneumatically loaded roll rewinding heads.

For a long winding metering large single winding head.

High rewinding speed.( 500 meters/minute )

Pneumatic pressure adjustment.(Rewinding the bobbin,and the process of opening pressure setting that strap)

DSP intelligent control system with microcontroller.

LCD touch control panel.

Electronic regulating system.

Easy and comfortable user-friendly design.

DSP automatic calibration system with microcontroller system.

Technical Specifications
Decompressor Unit Properties Rewinder Unit Properties
Maximum jumbo roll width 50 cm Maximum roll width 55 cm
Maximum roll diameter 80 cm Minimum bobbin diameter 28 mm
Maximum roll weight 280 kg Maximum bobbin diameter 76 mm
Standard bobbin diameter 76 - 150 mm Maximum roll diameter 20 cm
Technical Information
Physical Dimensions 100 x 100 x 70 cm
Working voltage 380 V , 50/60 Hz (+/- 10%)
Engine power 4 kW3P ACI Engine
Pneumatic air pressure 6 Atm
Rewind speed 500 meters/minute
Control Type Semi-Automatic - Computerized Control System
