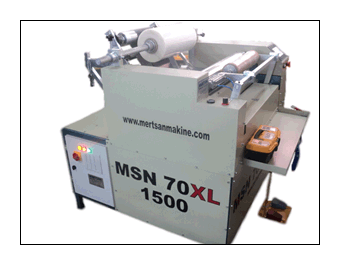

Jumbo Size Stretch Rewinder Machine

MSN 70 XL 1500

Stretch and Aluminum Foil Rewinder Machine


     Our MSN 70 XL 1500 model machine food stretch, Industrial stretch, Aluminium Foil products such as are used for the purpose of precise metering process.


     This model in particular,Industry stretch and Food stretch of the 1500 meter stretch rewinding machine is used for. To this machine can be mounted 80 cm in diameter rolls can be wound in and also all other short meters.

Product Info Technical Details Photo Gallery

To load jumbo coils 80 cm in diameter custom design.

Food stretch of 1500 meters,industrial stretch rewind and aluminum foil.

Pneumatic press bobbin rewinding heads.

For rewinding 1500 meters wide single rewinding head.

High winding speed. ( 500 meters/minute )

At High-speed rewinding nonperishable quality.

Pneumatic pressure adjustment unit opener.(The opening strap pneumatic pressure setting.)

DSP intelligent control system with microcontroller.

LCD touch control panel.

Electronic regulator system.

Easy and comfortable user-friendly design.

Automatic calibration system with DSP microcontroller system.

Technical Specifications
Decompressor Unit Properties Rewinder Unit Properties
Maximum jumbo roll width 50 cm Maximum roll width 55 cm
Maximum roll diameter 80 cm Minimum bobbin diameter 28 mm
Maximum roll weight 280 kg Maximum bobbin diameter 76 mm
Standart bobbin diameter 76 - 150 mm Maximum roll diameter 20 cm
Technical Information
Physical Dimensions 100 x 100 x 70 cm
Working voltage 380 V , 50/60 Hz (+/- 10%)
Engine power 4 kW3P ACI Engine
Pneumatic air pressure 6 Atm
Rewind Speed 500 meters/minute
Control Type Semi-Automatic - Computerized Control System
