Streç Makinesi

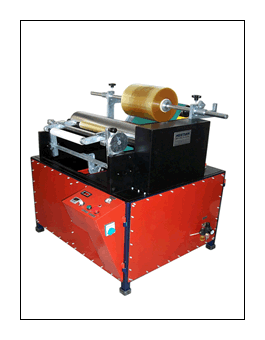

MSN 60

Stretch Rewinder Machine

     Our MSN 60 Model Stretch Rewinding Machine,Food stretch and stretch products such as industrial stretch,For metering process with the aim of being used by our customers.

     This model especially for an affordable solutions that are demanded from our customers looking for industrial stretch rewinding.

Product Info Technical Details Documents Photo Gallery

Food stretch,pallet stretch and aluminum foil rewind.

Health requirements electrostatic paint and stainless galvanized metal frame.

High rewinding speed.(400 meters/miinute)

At High-speed rewinding nonperishable quality.

Adjustable pneumatic system support.

Pneumatic pressure adjustment.(Rewinding the bobbin,and the process of opening pressure setting that strap)

Electronic regulating system.

Technical Specifications
Decompressor Unit Properties Rewinder Unit Properties
Maximum jumbo roll width 50 cm Maximum roll width 55 cm
Maximum roll diameter 40 cm Minimum bobbin diameter 28 mm
Maximum roll weight 180 kg Maximum bobbin diameter 76 mm
Standard bobbin diameter 76 - 150 mm Maximum roll diameter 20 cm
Technical Information
Physical Dimensions 100 x 100 x 70 cm
Working voltage 220 V , 50/60 Hz (+/- 10%)
Engine power 2,2 kW3P ACI Engine
Pneumatic air pressure 6 Atm
Rewind speed 500 meters/minute
Control Type Manuel Control - Standard Automation System
  pdf dosya ZIP folder
MSN 60 Product Catalog
